TA 2% FLOW TUBES

Imperial Flange and Fitting

sales@imperialco.net   P.O. Box 352262  Los Angeles, California 90035 (USA)

To:  Imperial home page   Venturis    Nozzles   TA 2% Flow Tubes     Flow Tubes    Orifice Flanges   Orifice Plates/RTJ Plate Holders  Orifice Fittings    Multistage Orifice Assemblies   Automatic Accessible Flow Controls   Manual Balancing Valves   Manifold Valve Series  Condensate Chambers/Straightening Vanes/Bleed Rings/Spectacle Blinds/Spool Pieces    Restriction Orifice Unions   Pitot Tubes  Grounding RIngs   Strainers    sales@imperialco.net

2% Head Loss Flow Tubes. After studying the flow industry for a number of years, concentrating on waste water treatment design, we recognized that there are major issues concerning Flow Tubes. Efficiency, cost, energy consumptionm performance, location and accuracy are some of these concerns.

Our dedication to quality and the flow industry have driven us to new patented designs. Our TA-2% head loss tube showed a 98% recovery on Beta Ratio of 0.30. Maximum performance with minimum operating costs are available in a single primary element.  Differential pressure primary flow elements designed for extremely low pressure loss, rangeability and accuracy.

The most important factor in energy usage performance of a low loss flow tube is the downstream cone. We do not supply unless a truncated cone is requested. We have proven a full length cone with minimun included angle will keep the fluid closer to the wall, and create higher pressure recovery. Our TA 2% head loss tube is designed to save power consumption dollars.

Having many years of expertise in flow has given us the confidence to offer the most reliable, accurate and repeatable primary flow elements that are economically designed to offer customer satisfaction from technical and design points of view. Our engineering goal with the waste water industry is to create highly accurate and stable primary elements with excellent energy recovery and rangeability. The conclusion of our data and research has resulted in our low loss and TA 2% head loss tube. It a has the lowest head loss in the industry.

Click on the pages from our flow tube manual or scroll down page to see enlarged images:

Introduction

Introduction

Design and Description

Design and Description

More Design and Description

Additional Design and Description

More Design and Description

Additional Design and Description

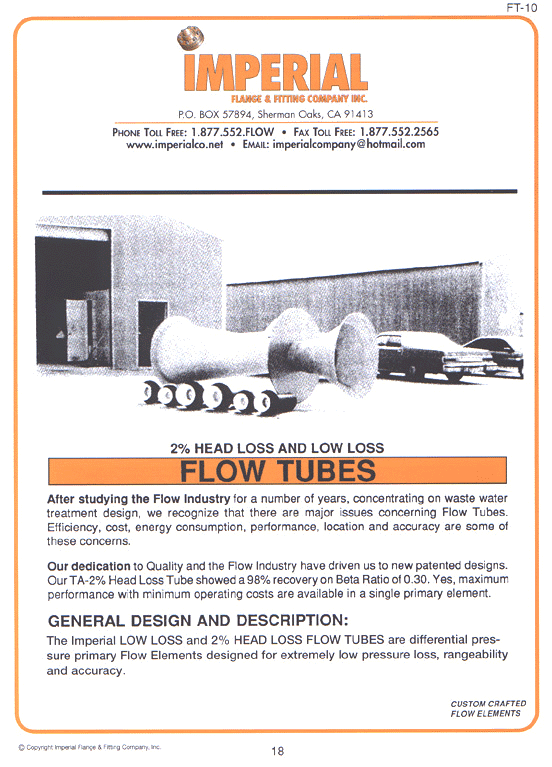

TA 2% Flow Tube Introduction

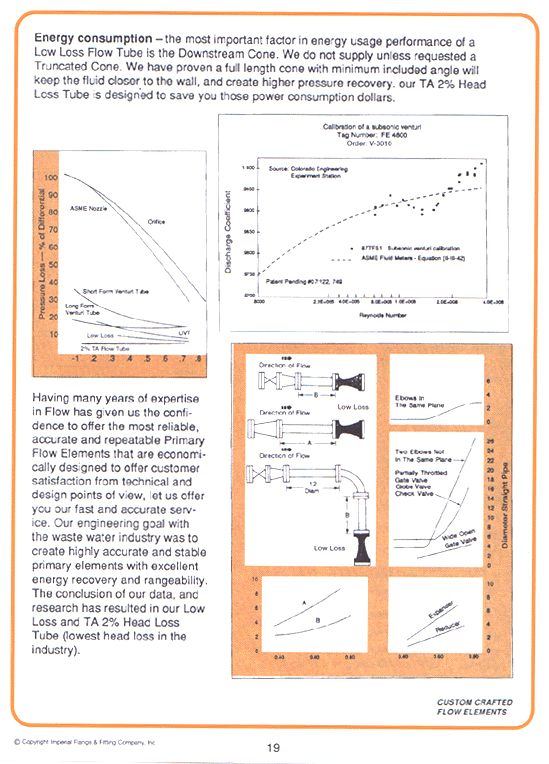

TA 2% Flow Tube Design and Description

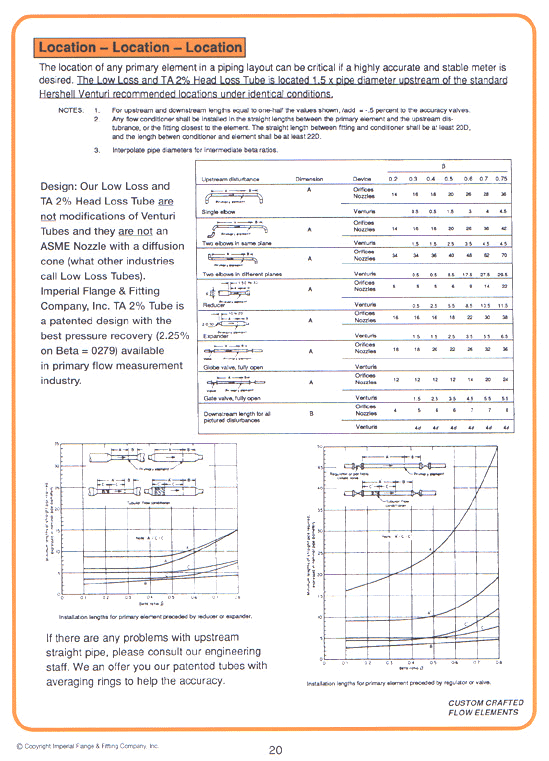

TA 2% Flow Tube Additional Design and Description

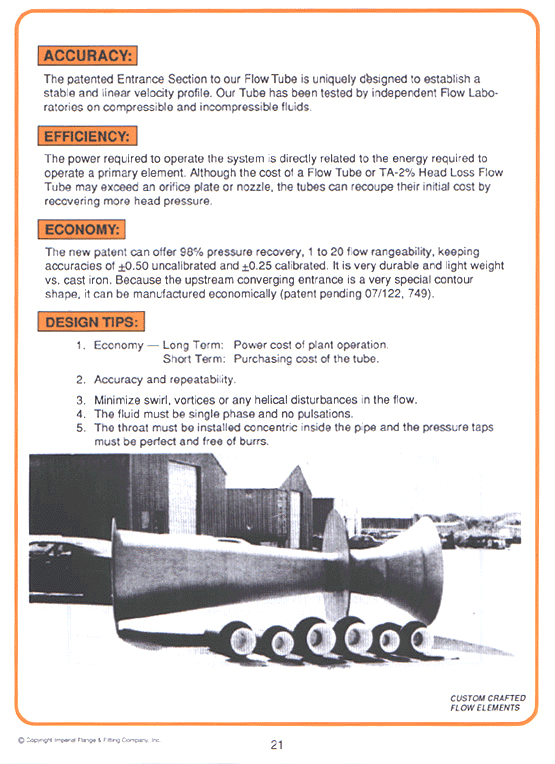

TA 2% Flow Tube Additional Design and Description
