Y-STRAINERS/BASKET STRAINERS

Imperial Flange and Fitting

sales@imperialco.net   P.O. Box 352262  Los Angeles, California 90035 (USA)

To:  Imperial home page   Venturis    Nozzles   TA 2% Flow Tubes     Flow Tubes    Orifice Flanges   Orifice Plates/RTJ Plate Holders  Orifice Fittings    Multistage Orifice Assemblies   Automatic Accessible Flow Controls   Manual Balancing Valves   Manifold Valve Series  Condensate Chambers/Straightening Vanes/Bleed Rings/Spectacle Blinds/Spool Pieces    Restriction Orifice Unions   Pitot Tubes  Grounding RIngs  Strainers  sales@imperialco.net

Imperial offers Y-Strainers and Basket Strainers to fit a wide variety of pipe sizes.


Y-Strainers Y-Strainers

Basket Strainers Standard Basket Strainers
150#   300#   600#

Economy Basket Strainers
150#   300#   600#




Y-Strainers

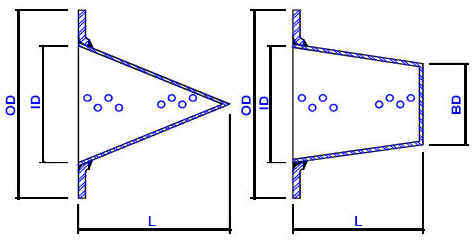

Cone Strainer          Basket Strainer

Y-Strainers

B.D.: 5" and larger will have inverted cones for strength and increased area.
Struts, hoops and bracing for standard cones and basekets can be furnished for additional strength.
MATERIALS: Carbon Steel, Stainless Steel, Chromoly, Monel, Hastelloy. Others available.
WELDING: Resistance, Tig, and Oxyacetylene.
LINERS/COVERS: Available for small particle removal 200 thru 10 mesh.

Y-Strainer Sizes





STANDARD BASKET STRAINERS
(shown with optional Lift Lug)

NOTE #1: Other pipe schedules are available in addition to those in tables below.
MATERIALS: Carbon Steel, Stainless Steel, Chromoly, Monel, Hastelloy. Others available.
Fabrication Codes: ASME B31.3. ASME B31.1 Optional
Designed to minimize pressure drop by maintaining a minimum of 1.15 ratio of annulus outlet area as compared to outlet nozzle cross section area.

Standard Basket Strainers

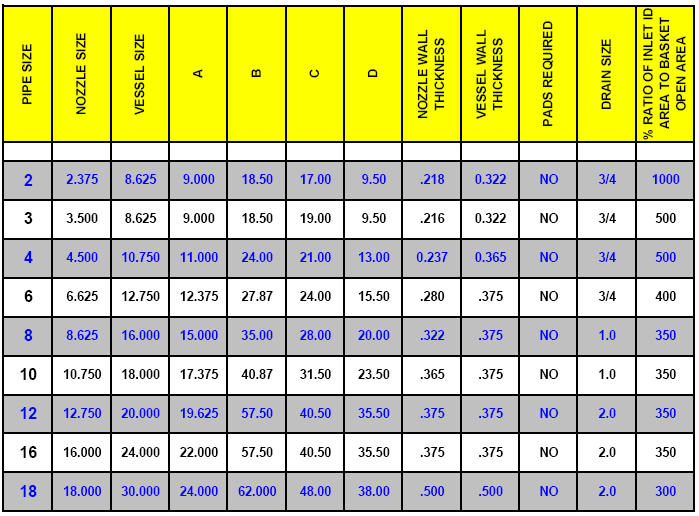

150# STANDARD BASKET STRAINERS

Standard 150# Basket Strainer Sizes



300# STANDARD BASKET STRAINERS

Standard 300# Basket Strainer Sizes



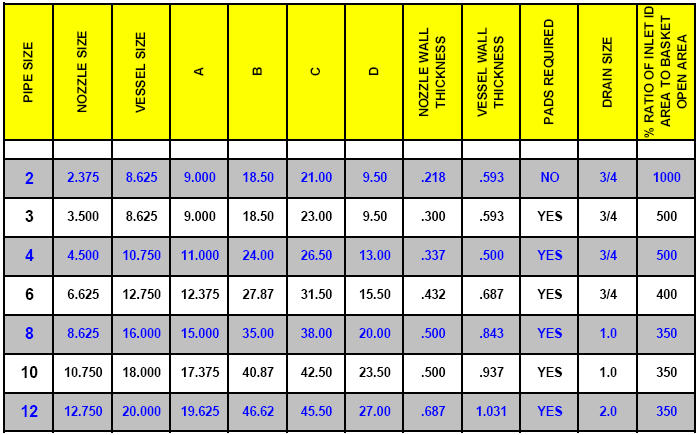

600# STANDARD BASKET STRAINERS

Standard 600# Basket Strainer Sizes





ECONOMY BASKET STRAINERS
(shown with optional Lift Lug)

MATERIALS: Carbon Steel, Stainless Steel, Chromoly, Monel, Hastelloy. Others available.
Fabrication Codes: ASME B31.3. ASME B31.1 Optional
By using the unique basket concept, a smaller body can be used and still maximize annulus area.

Economy Basket Strainers

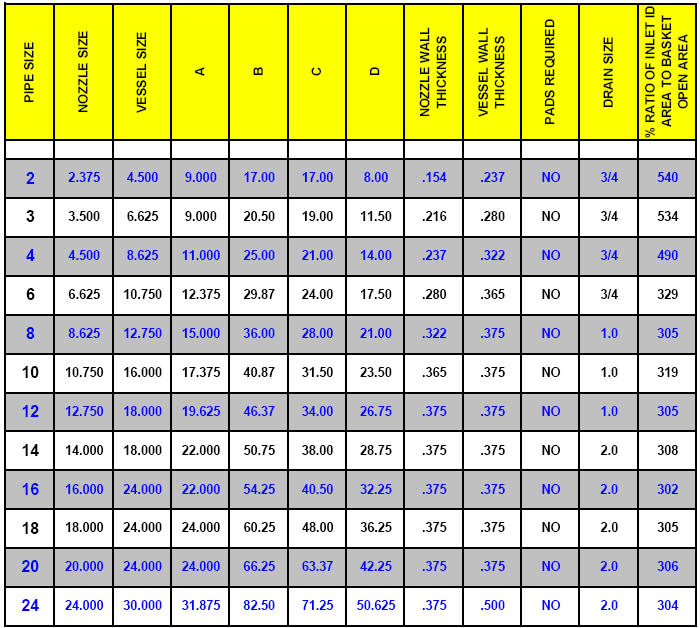

150# ECONOMY BASKET STRAINERS

Economy 150# Basket Strainer Sizes



300# ECONOMY BASKET STRAINERS

Economy 300# Basket Strainer Sizes

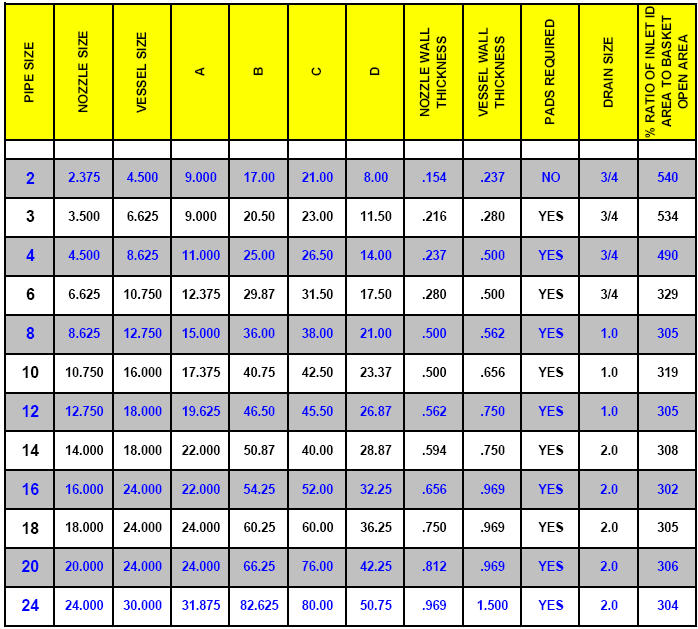

600# ECONOMY BASKET STRAINERS

Economy 600# Basket Strainer Sizes
